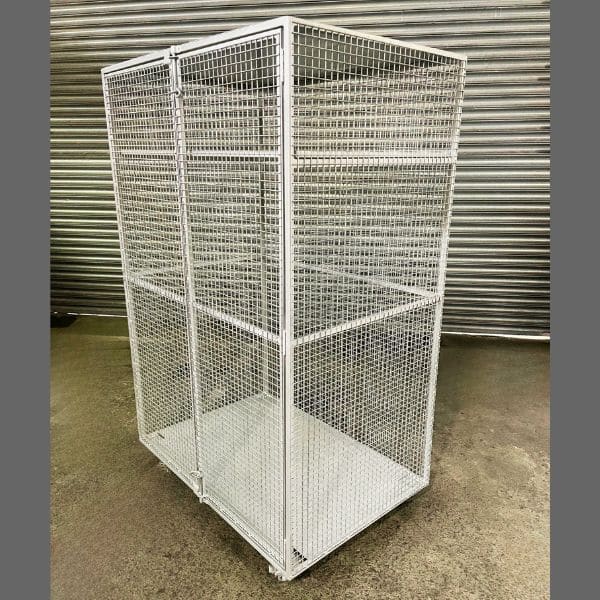

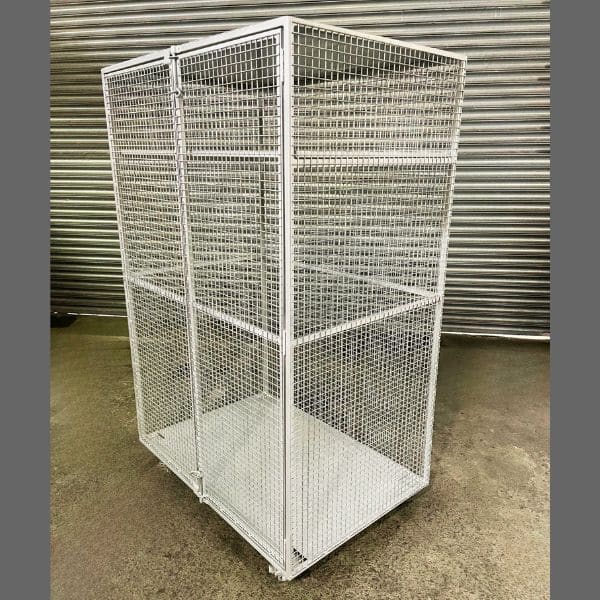

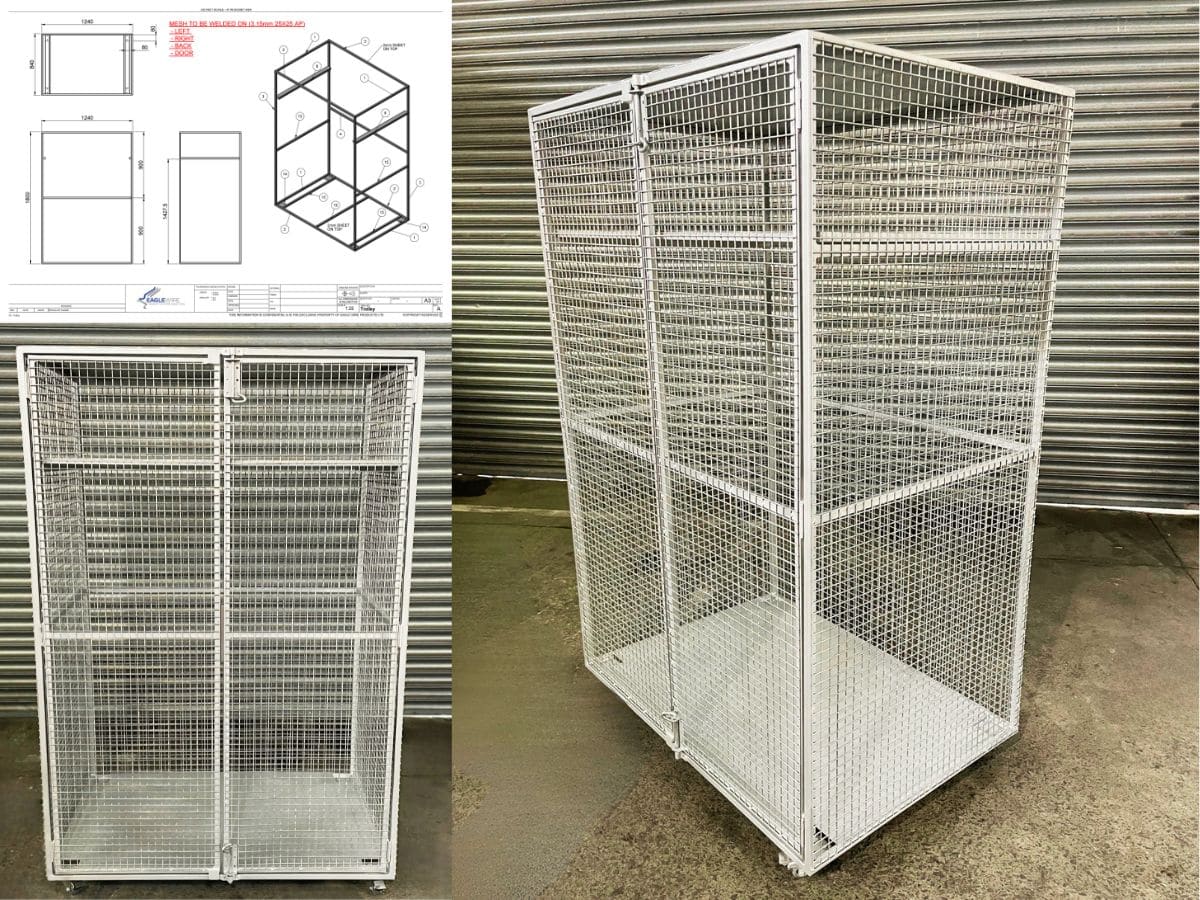

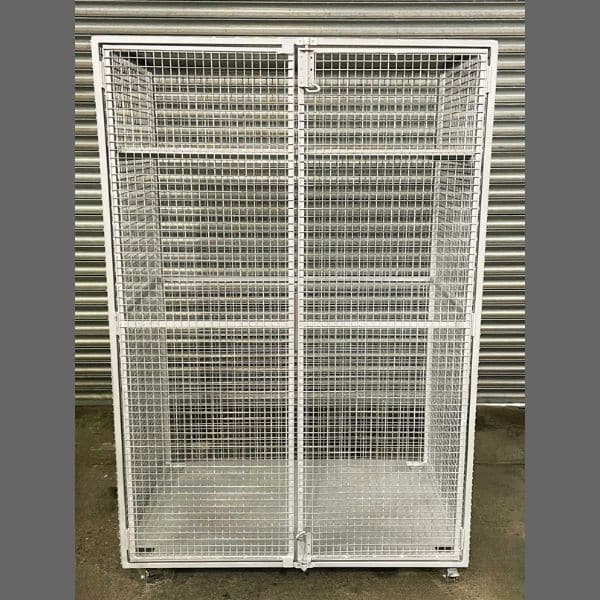

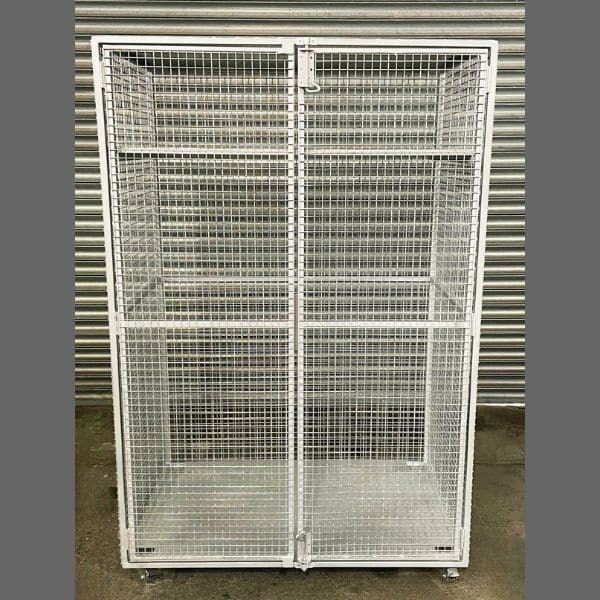

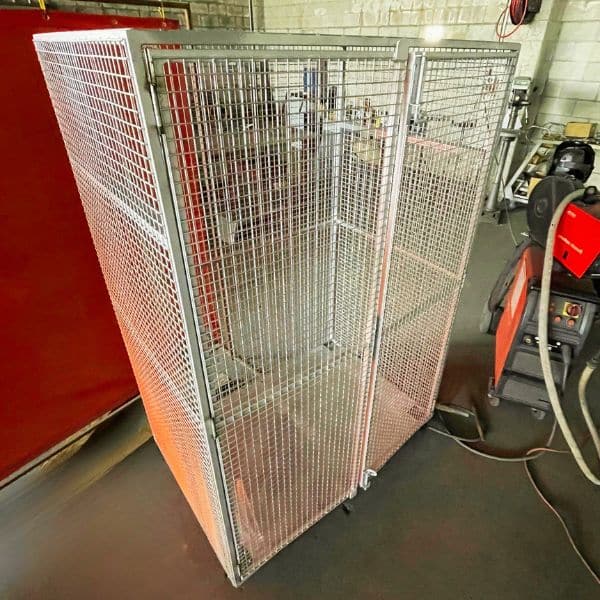

A custom steel mesh trolley, designed and fabricated for a local Auckland manufacturer. Starting with a simple concept sketch, Eagle Wire developed the design, produced full CAD drawings, and delivered a robust, lockable trolley that was ready for immediate use in a busy factory environment.
Client: Local Manufacturer in Auckland
Project Scope: Custom steel mesh trolley (waste management cage) for the secure storage and transport of hazardous materials in a factory environment.
Products and Services Supplied
- Client concept developed into full CAD and shop drawings
- Complete in-house fabrication and assembly
- Custom steel frame with welded mesh panels
- Galvanised sheet panels, cut and fitted in-house

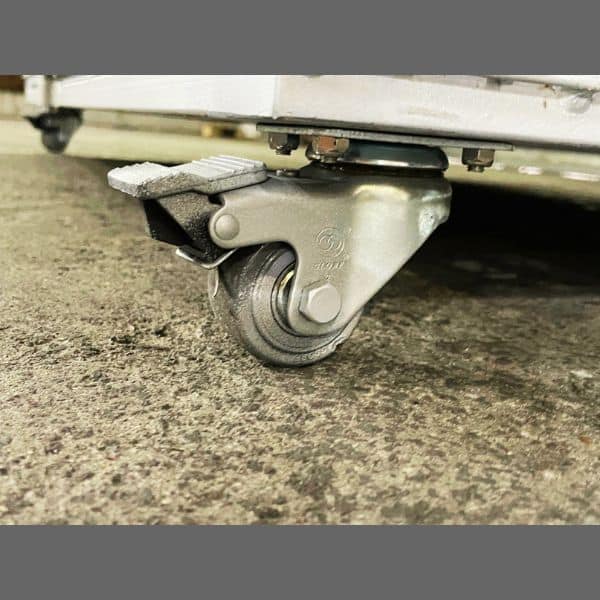

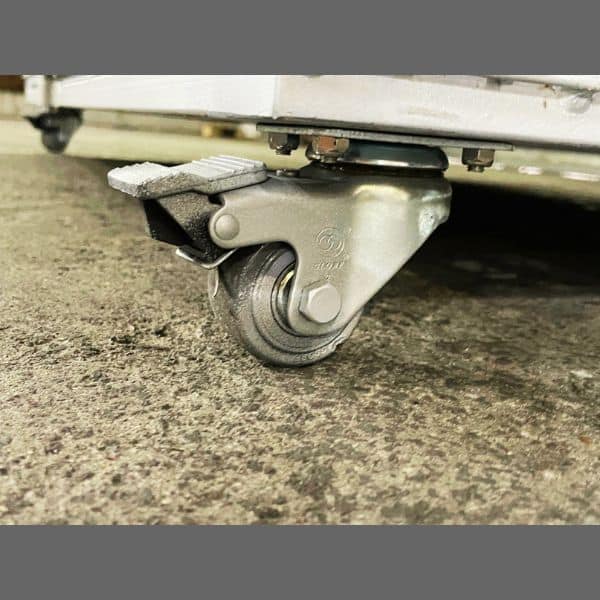

- Swivel castor wheels for easy manoeuvrability

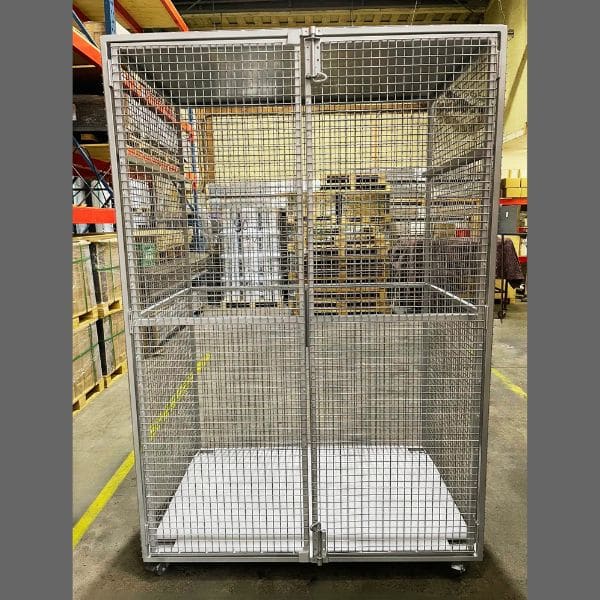

- Bolt system with lockable doors suitable for padlocks
- Customer collection from Eagle Wire’s dispatch facility
The Brief
A local manufacturer approached Eagle Wire with a basic concept for a steel mesh trolley that could securely store and transport hazardous materials around their factory. The trolley needed to be robust enough for daily industrial use while allowing easy access to its contents. Security was also essential, with lockable doors that could accommodate padlocks. While the customer had developed an initial concept, they required Eagle Wire to complete the design, produce detailed CAD drawings for approval, and manufacture the finished product.
Solutions Delivered

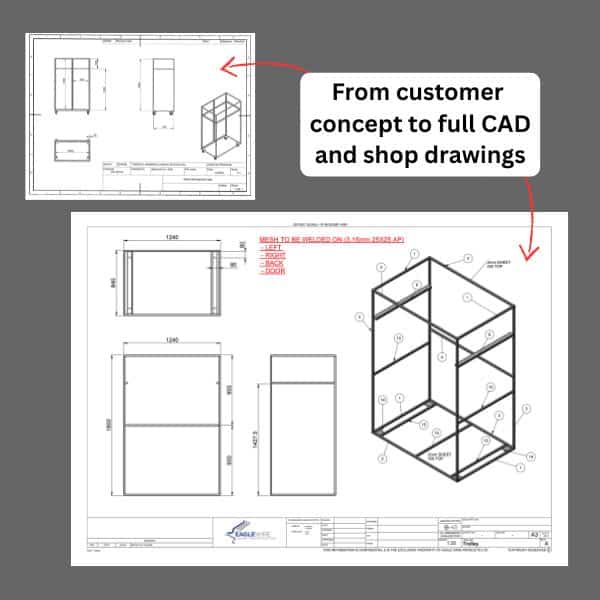

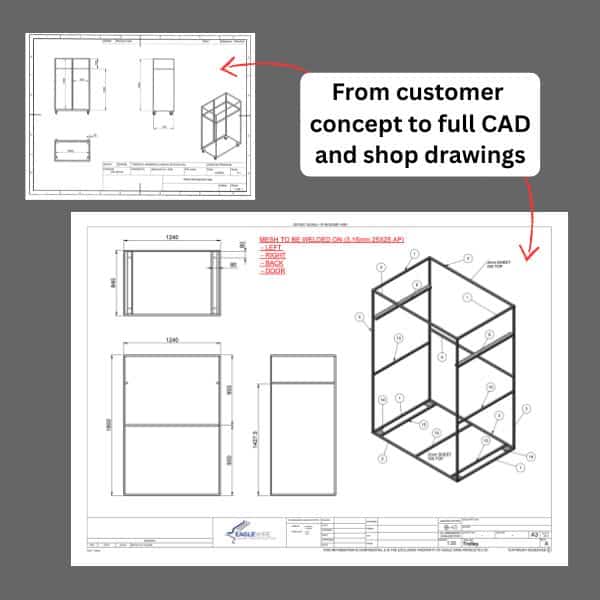

Eagle Wire’s CAD team refined the customer’s concept into a complete set of production-ready drawings, ensuring the design met both functional and manufacturing requirements before fabrication began.

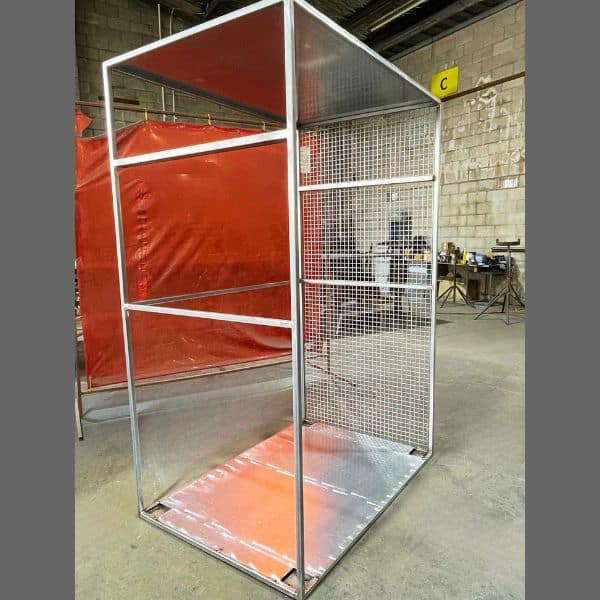

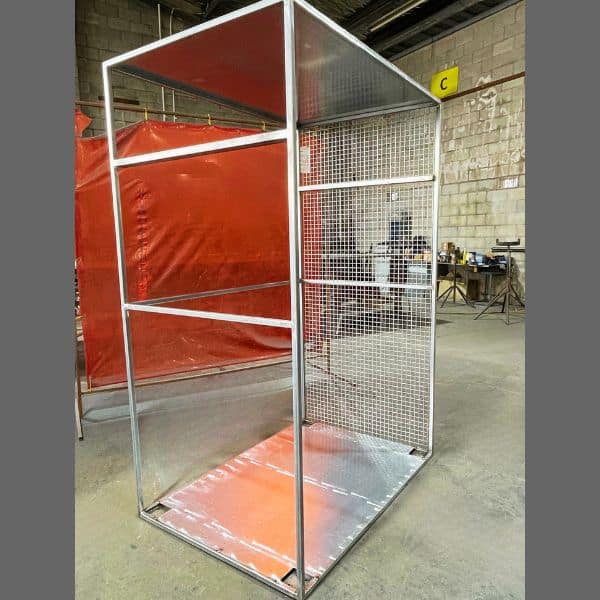

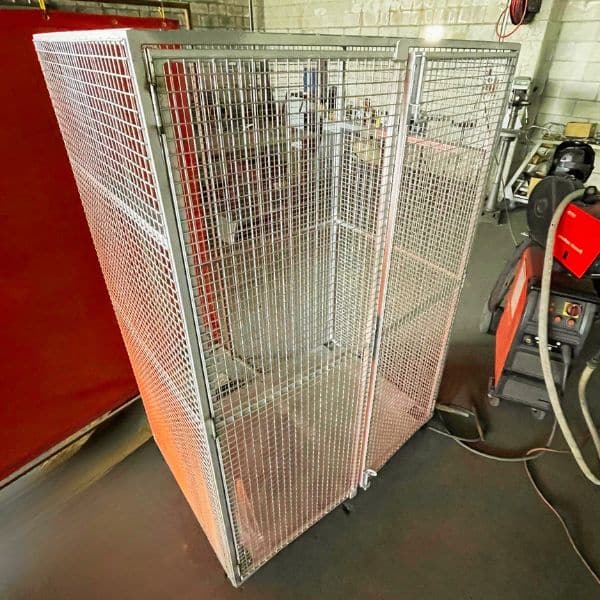

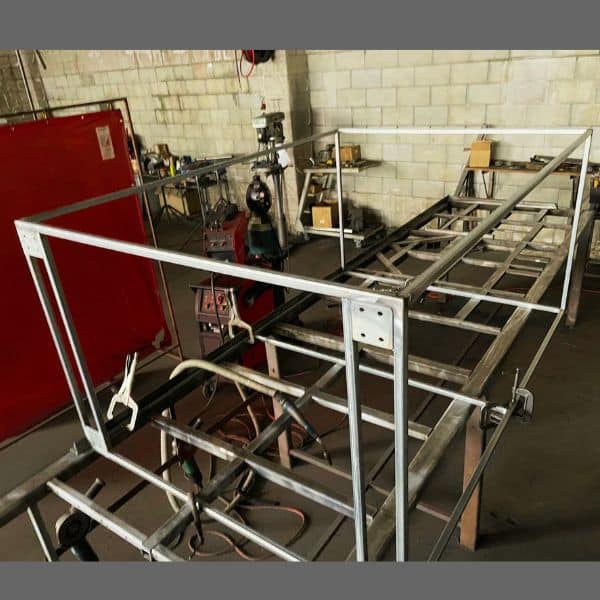

The trolley frame was manufactured in-house using pre-galvanised steel, with Eagle Wire’s welded mesh panels fixed to the frame to create a strong, durable enclosure. Galvanised sheet panels were cut in-house using precision cutting equipment and fitted where required, while swivel castor wheels and fastening hardware were sourced and installed to complete the build.
To maximise corrosion resistance, all materials were pre-galvanised and every welded joint was treated with a high-quality galvanising spray after fabrication.

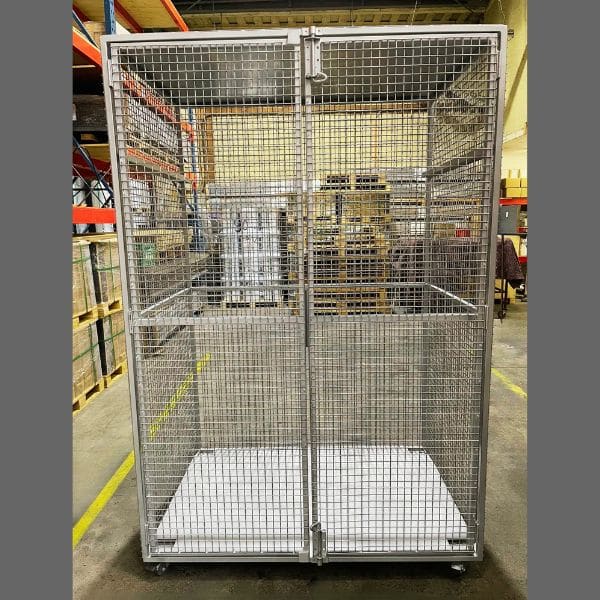

Once complete, the fully assembled trolley was ready for immediate use. As the customer was based locally, they were able to collect the finished product directly from Eagle Wire’s dispatch facility.
Outcome
The completed steel mesh trolley provided the customer with a secure, durable and highly practical solution for storing and transporting hazardous materials throughout their factory. By handling everything from CAD design through to fabrication and final assembly in-house, Eagle Wire delivered a fast turnaround and a seamless experience. The finished trolley was ready to go straight into service, giving the customer a purpose-built solution that met their operational and security requirements.
Why Eagle Wire
This project demonstrates Eagle Wire’s ability to take an initial concept and turn it into a fully engineered, production-ready solution. With in-house CAD design, steel fabrication, mesh manufacturing and assembly capabilities, we can deliver custom industrial products quickly and efficiently, without the need to coordinate multiple suppliers. Whether you need a custom storage cage, mesh trolley, or specialised fabrication project, our team can help bring your idea to life.
